IRIAM Chara Checker is a web service that allows streamers to check and submit the necessary files for implementing a Live 2D Model, as well as verify the model's movements through videos.
*Note: This service is only accessible to those who have the rights to implement a model and can log in using their IRIAM account.
*Note: You will need your IRIAM account login information to log in.
*Note: For recommended operating environments for this service, please refer to the FAQ below.
-Recommended Operating Environments for IRIAM Chara Checker
<Table of Contents>
-Features Available in IRIAM Chara Checker
-How to Apply for Model Implementation
-Screen Images for Each Step
-Q&A
<Features Available in IRIAM Chara Checker>
1. File Upload
2. Function to Check for Errors in Submitted Files
3. Function to Verify Movements through Videos
4. Model Implementation
<How to Implement Model>
*Note: For images of steps 2, 3, and 4, please refer to "Screen Images for Each Step."
1. Upload Files
• All files exported from Cubism Editor, such as moc3 files, are required.
2. Check for Errors in Submitted Files (Note 1)
• When you upload the files, the system can automatically check the specifications.
• The system will check the contents of the files and notify you of "No Issues / Caution / Error" for each item.
3. Verify Movements through Videos (Note 2)
• If there are no issues with the file contents in the above check, click "Next" to proceed to generate a video to verify the model's movements.
• It usually takes about 10 to 30 minutes to generate the video.
• After the generation is complete, a web notification will be sent, so please check again based on the estimated time.
• *If you want to verify the model's movements without using IRIAM Chara Checker, tracking with Vtube Studio and an iPhone will provide the closest movements.
• The right side of the screen will display a sample movement, and the left side will show the movements of the character using the uploaded model. Please check if there are any differences between the sample model on the right and your model.
• If an error occurs, please correct it according to the comments and upload it again.
• You can download the video to your device.
• The video will be deleted 72 hours after the file upload, so please check it as soon as possible.
4. Model Implementation (Note 3)
• Once you have verified the movements through the video, you can proceed with the model implementation by filling in the necessary information.
• This must be done within 72 hours of file upload.
• After starting the implementation, the model will be implemented in about 5-10 minutes, and you will be able to check it on the stream preparation screen of the IRIAM app.
<Screen Images for Each Step>

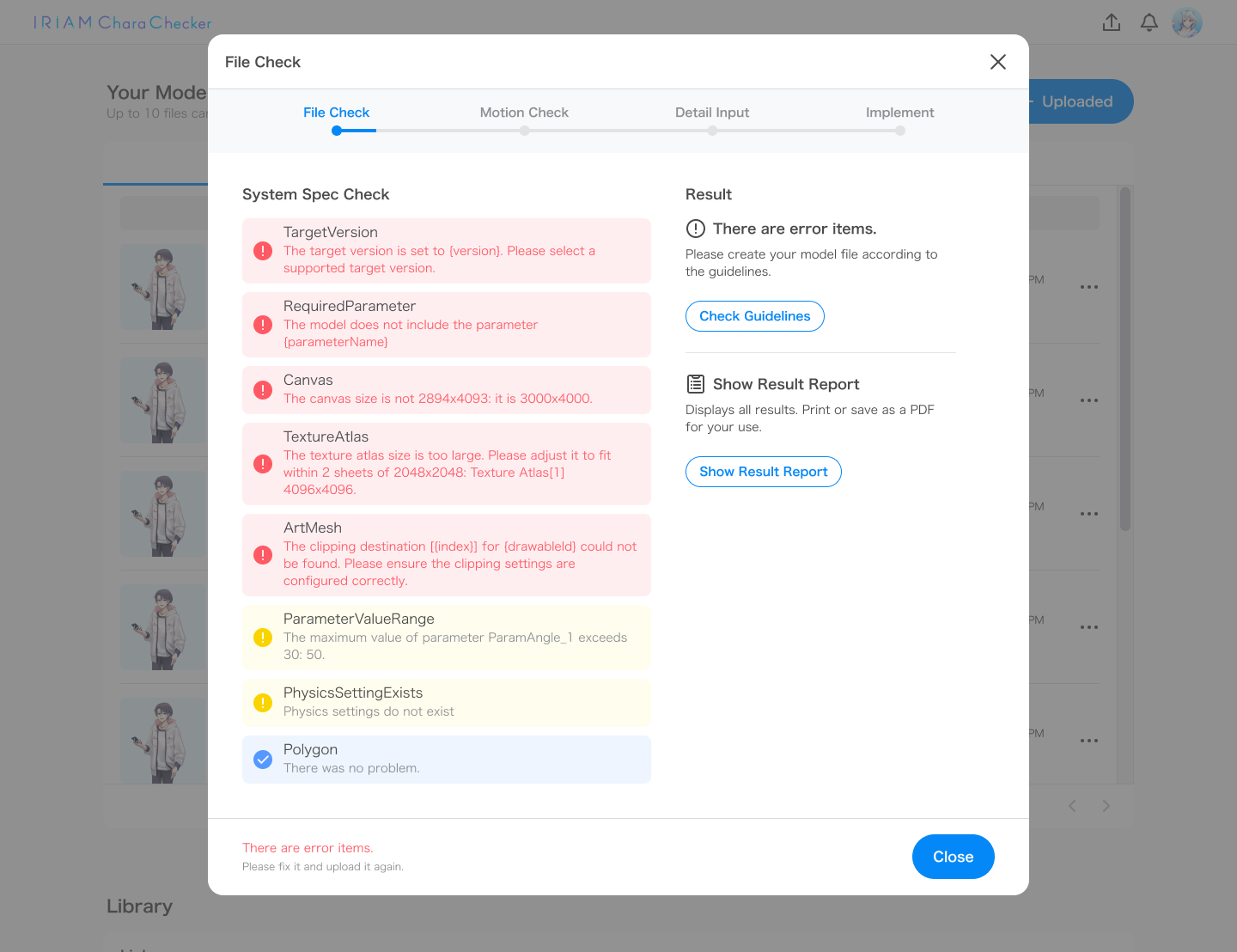

*Note 1: Screen for Checking Errors in Submitted Files

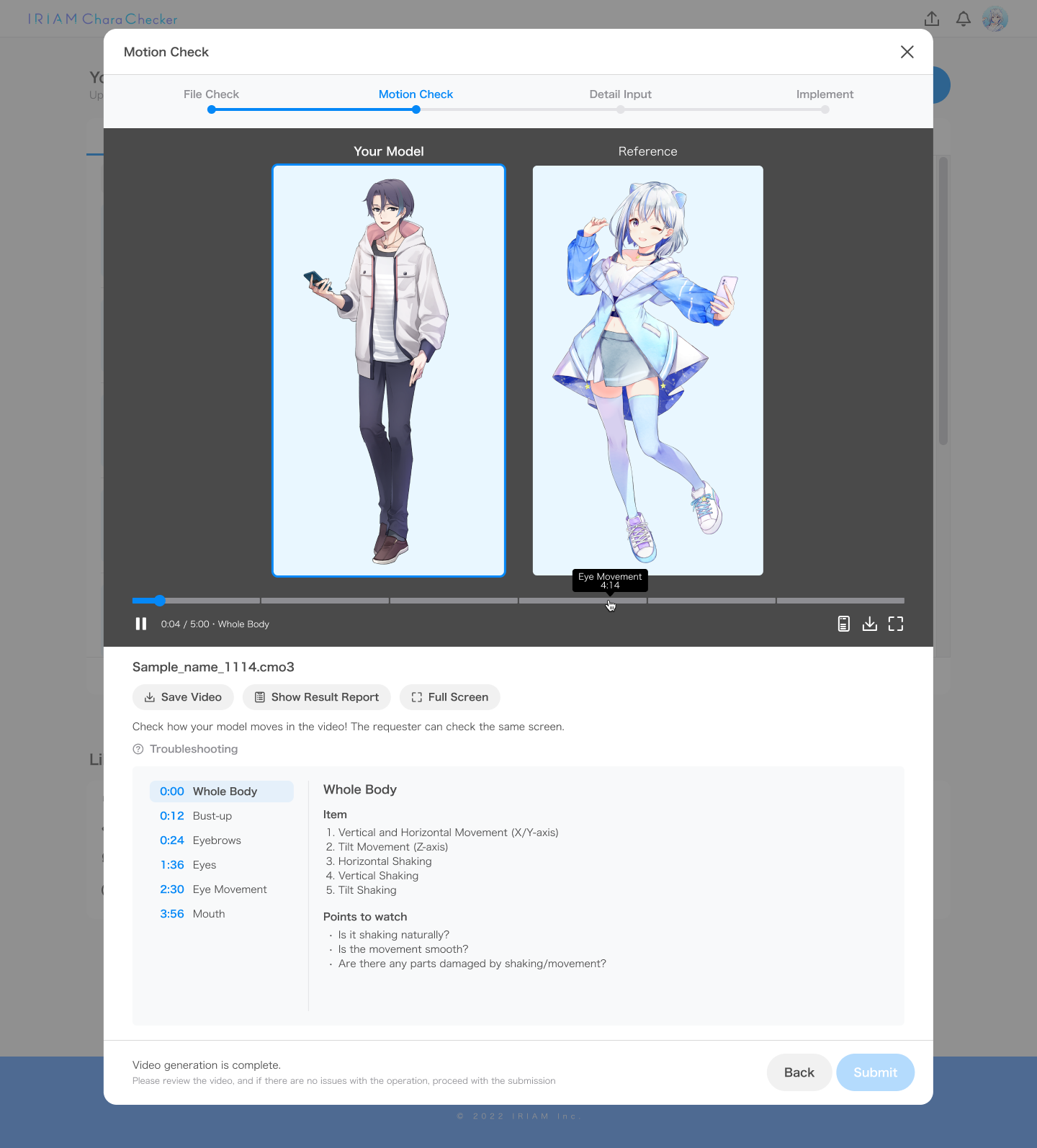

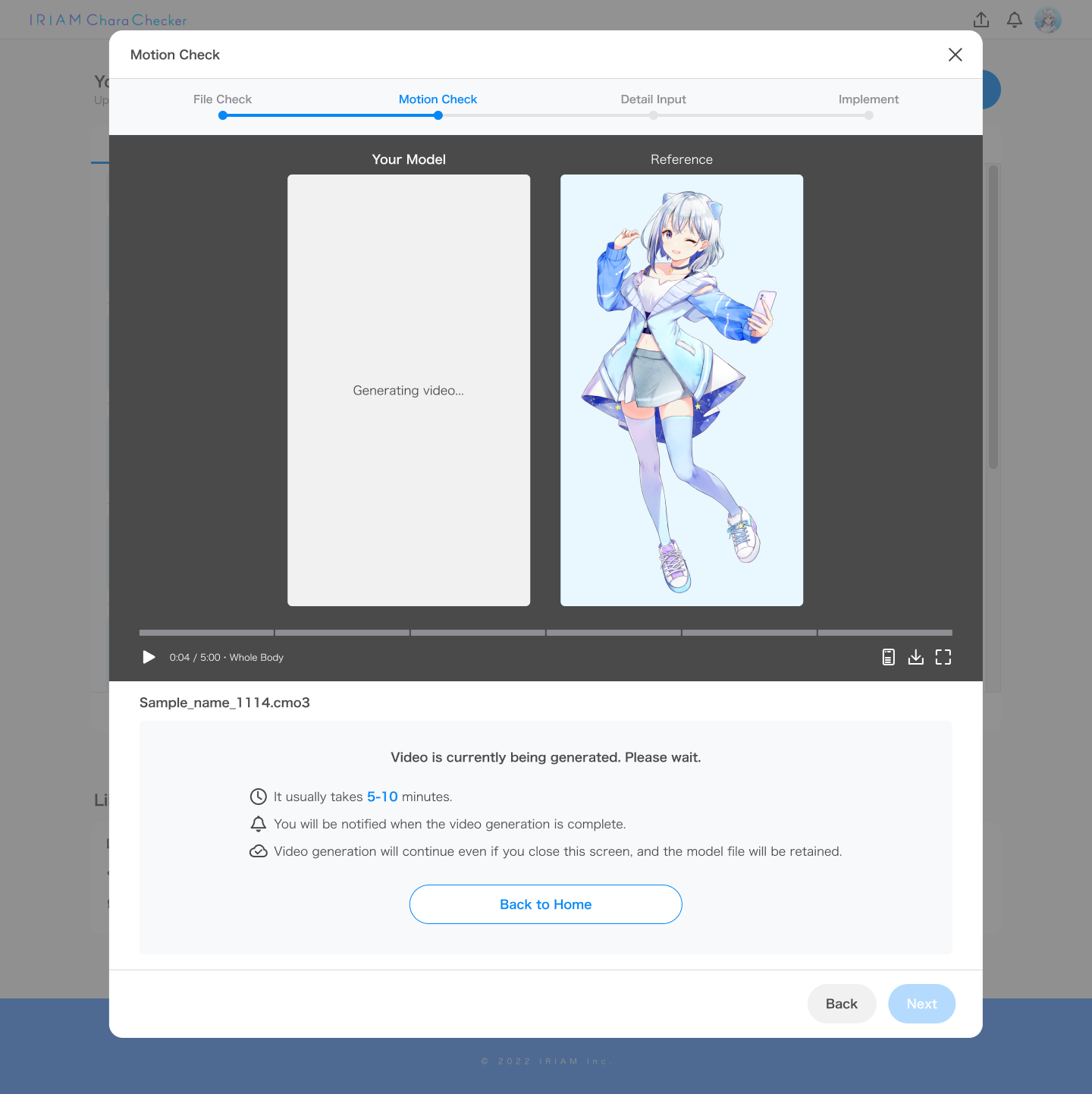

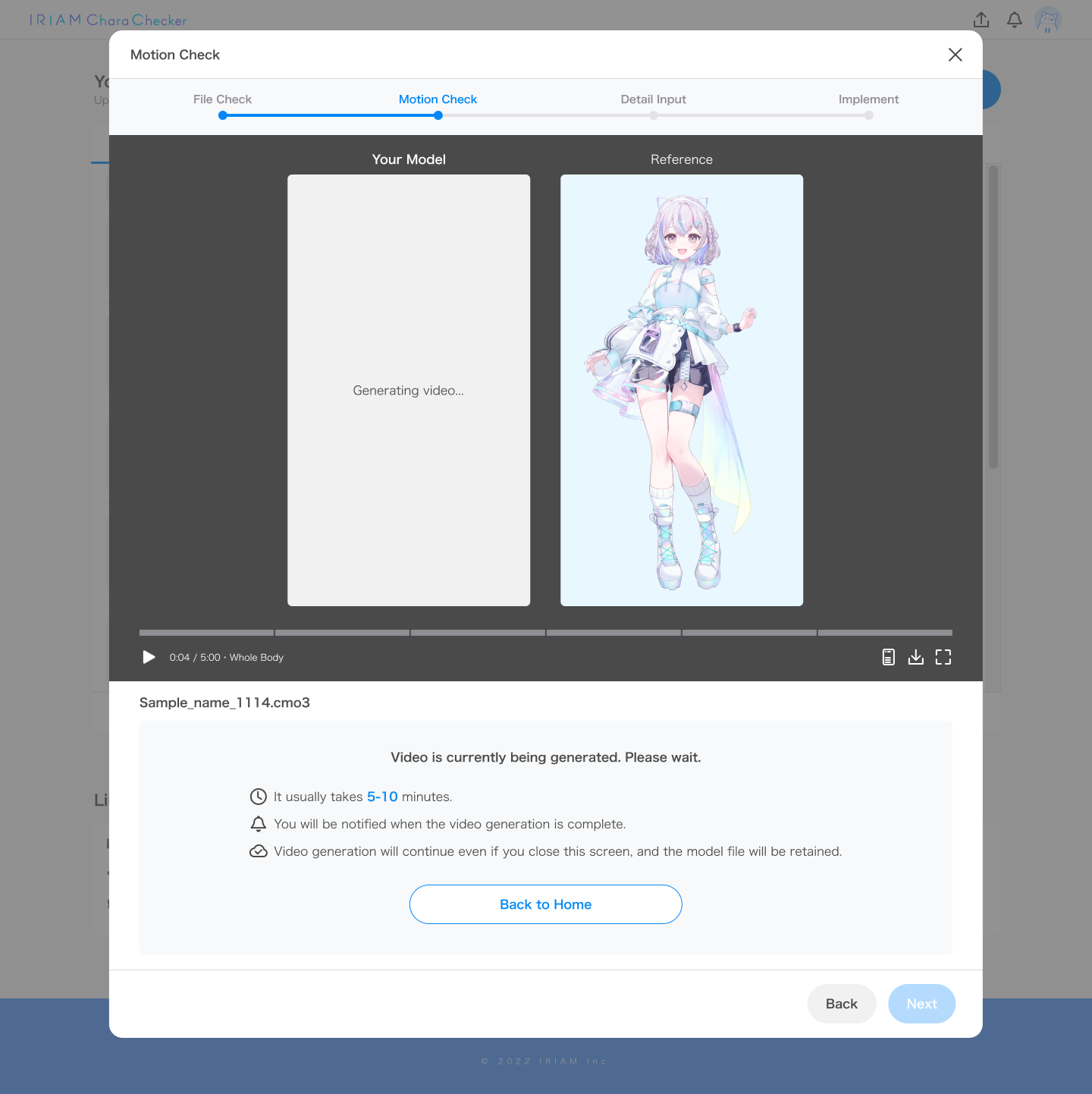

*Note 2: Screen for Verifying Movements through Videos

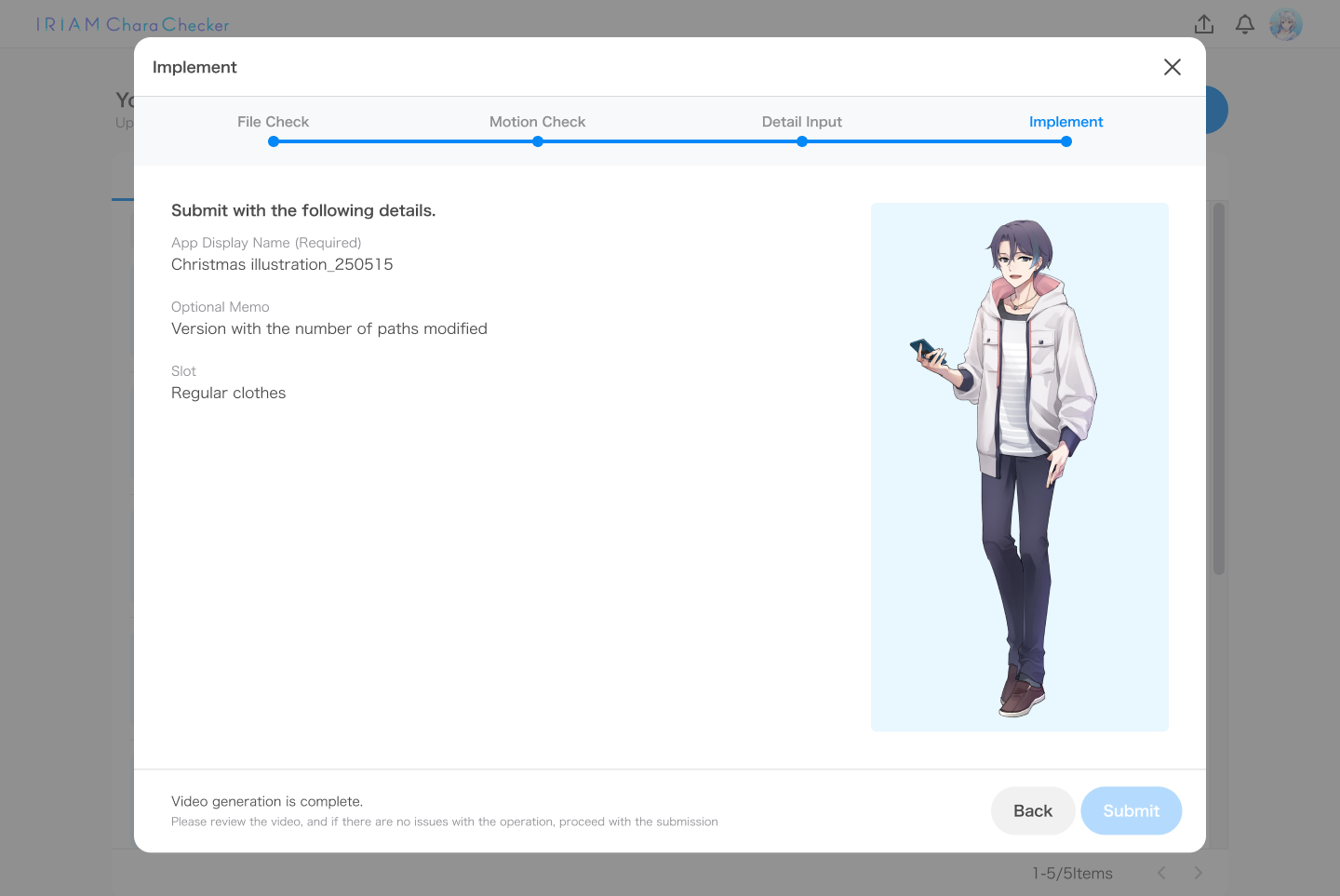

*Note 3: Screen for Model Implementation
<Q&A>
Q: Can I use IRIAM Chara Checker on my smartphone?
A: If the recommended operating environment is met, you can use it on your smartphone. Please check the FAQ below.
-Recommended Operating Environments for IRIAM Chara Checker
Q: Does it cost any fee to implement a Live 2D Model?
A: Please prepare the model files yourself, including any corrections. There is no cost to use IRIAM Chara Checker.
If you have any questions or concerns that cannot be resolved within the FAQ, please refer to the following and contact us through the inquiry window within the IRIAM app.
